| MODEL |

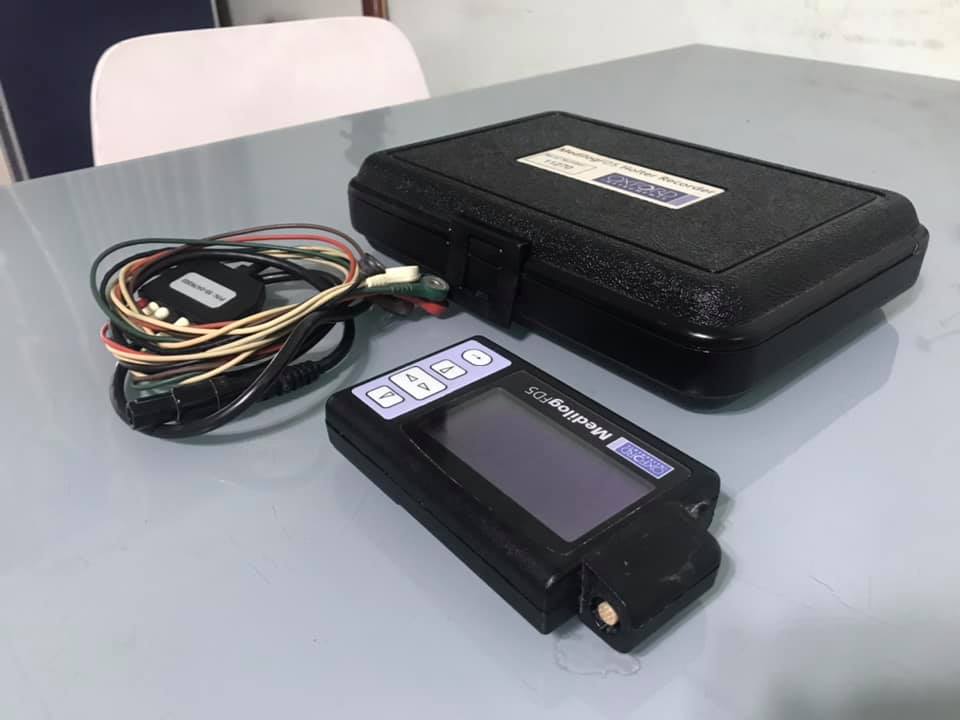

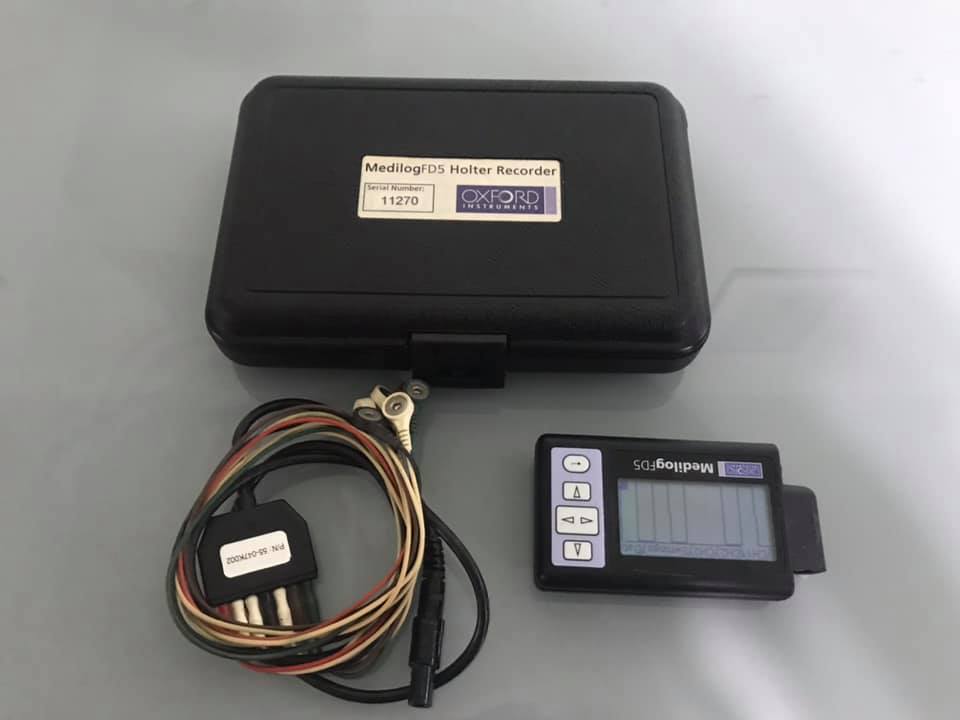

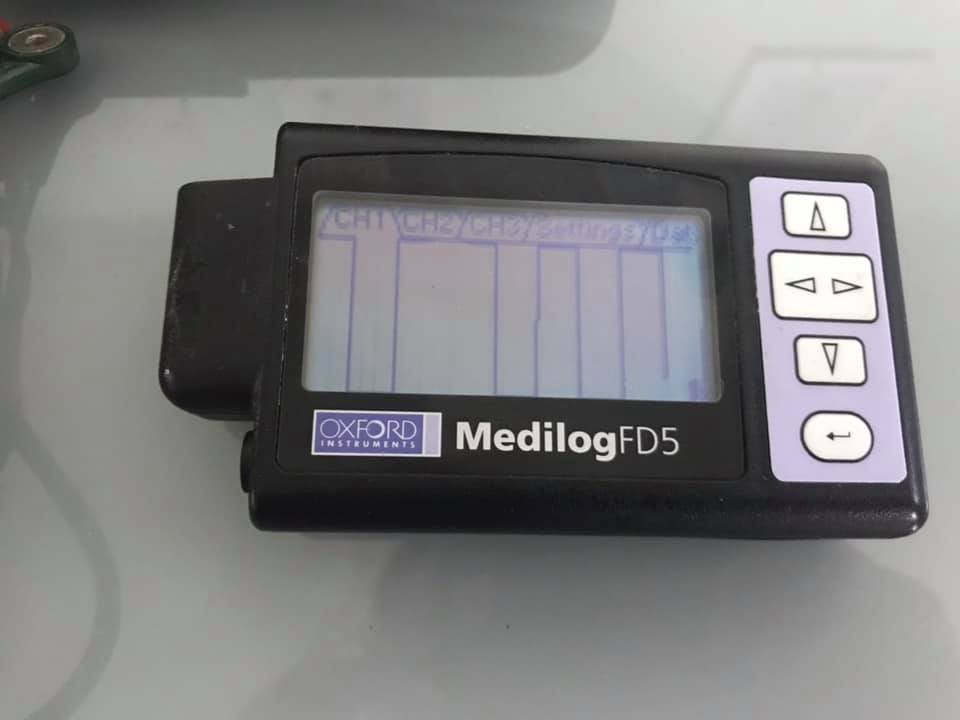

Medilog FD5
|
| RECORDER |
|
| Medium (RECORDER) |
Flash memory |
| Recording capability,hr (RECORDER) |
24, 48 |
| Frequency resp, hz (AMPLIFICATION) |
0.05-100 |
| Type (CONFIGURATION) |
Digital wide screen |
| CALIBRATION INDICATOR |
Yes |
| Battery (POWER NEEDED) |
|
| Duration, hr (POWER NEEDED) |
24, 48 |
| Type (CONFIGURATION) |
1 AA alkaline |
| Rechargeable (POWER NEEDED) |
Yes |
| DIMENSIONS, (HXWXD) CM, (IN) |
7 x 11 x 2 (2.8 x 4.3 x 0.8) |
| WEIGHT, g (oz) (BATTERY) |
141 (5) |
| Type (CONFIGURATION) |
Retrospective |
| Data recorded (RESERVOIR) |
|
| Ecg (PARAMETERS) |
3 |
| TIME DISPLAYED (DATA RECORDED) |
Yes |
| RECORDED REMARKS |
|
| ARRHYTHMIA DETECTION |
Yes |
| Patient (event marker) (RECORDER ANNOTATION) |
Yes |
| Time (RECORDER ANNOTATION) |
Yes |
| OTHER ATTRIBUTES (Interference compensation) |
Widescreen display; automatic QA checks. Meets requirements of ISO 9000. |
